Understanding USB Types/ports and Their Applications

Introduction

Universal Serial Bus (USB) technology has revolutionized how we connect and interact with electronic devices. From charging smartphones to transferring data between computers and peripherals, USB has become the dominant signal transfer technology worldwide. This article delves into the different USB types, their applications, and the importance of USB in today’s tech landscape.

Different USB Types

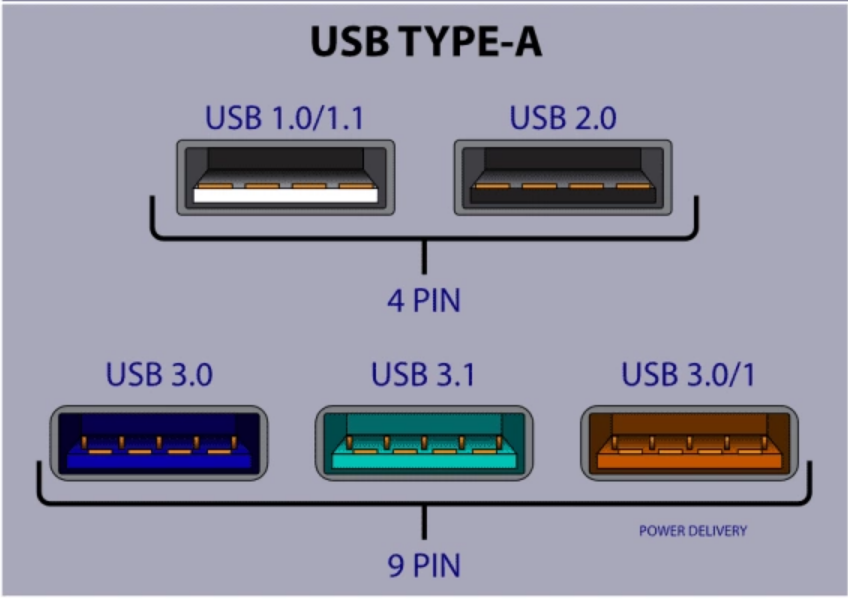

USB Type A

USB Type A is the most common USB connector. It is typically found on one end of almost all USB cables and is used to connect various devices such as keyboards, mice, and external storage devices to computers and chargers. The different generations of USB Type A (1.0, 2.0, 3.0, and 3.1) are all compatible with each other.

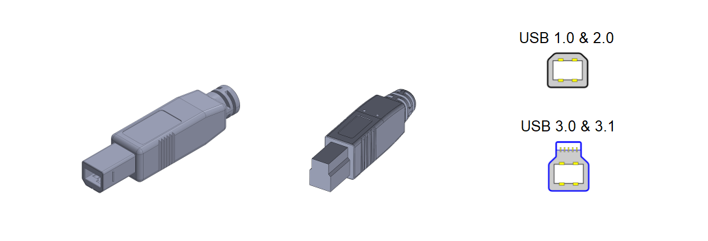

USB Type B

USB Type B connectors are square-shaped and are commonly used to connect computers to printers, scanners, and other similar equipment. While USB Type B 1.0 and 2.0 plugs are compatible with receptacles of all generations (1.0, 2.0, 3.0, and 3.1), the 3.0 and 3.1 plugs are only compatible with their respective receptacles.

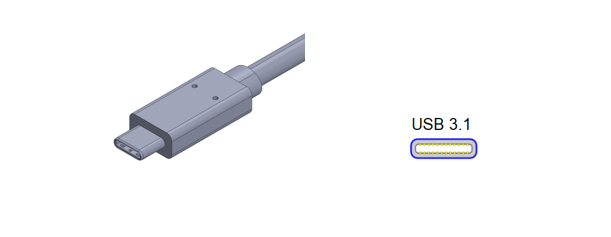

USB Type C

USB Type C is the newest addition to the USB family. It acts like a traditional mobile charger and is available only in generation 3.1. Its horizontally symmetrical design allows it to be inserted into the receptacle in either direction, making it user-friendly and versatile.

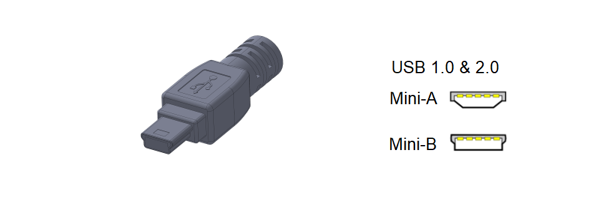

Mini USB

Mini USB plugs, specifically Type A and Type B, were widely used for charging older cell phones, cameras, and MP3 players. Mini USB Type B plugs are compatible with the second generation of mini-B and mini-AB receptacles.

The Continuing Relevancy of USB

The USB standard has simplified the myriad of connectors and cables that were initially used to link peripheral devices to host computers. Its ongoing evolution has led to increased data speeds and power delivery via a small, inexpensive, and easy-to-use interface. USB technology has expanded beyond connecting peripherals to improving user experiences across various products, including smartphones, mobile devices, games, toys, smart home products, and industrial networking. Today, USB devices are frequently used for charging purposes, further cementing USB’s role as a crucial technology in modern electronics.

USB Power and Charging Guidelines

USB ports offer a variety of power outputs. When using a standard USB port, it will only draw as much power as the port can supply or as much energy as it needs, whichever is lower. The maximum power output of a USB depends on the standard of the host, the device, and the cable in use. For instance, a device’s charger may be rated at 2.1 A with USB 3.1, which can output 3 A. The device’s software will negotiate its requirements to limit the output to 2.1 A, ensuring safe and efficient power delivery. To avoid designing a supercharged USB that could affect the longevity of devices, it is essential to understand the capabilities of different USB standards and cables. Tools like OrCAD PCB Designer from Cadence provide valuable solutions for designing and analyzing USB layouts and other power and data transfer needs.

USB Hubs & Switches

Choosing the right brand for USB hubs and switches can make a significant difference. Eaton, for instance, offers products with solid engineering, proven reliability, and exceptional customer service. Their rigorous quality control and independent testing ensure that their products meet or exceed the latest safety and performance standards. This commitment to quality is backed by industry-leading warranties and responsive customer service.

Troubleshooting Legacy USB Devices

Legacy devices that work fine on USB 1.0 or 2.0 ports may encounter issues when connected to a USB 3.0 port. If a device installs correctly but gives timeout errors on a USB 3.0 port, it may be due to the faster response times of the newer port. In such cases, it might be possible to slow down the USB 3.0 port or put it in a compatibility mode to use the legacy device effectively.

Understanding USB Port Labels

+(Plus) Sign

The “+” sign indicates a USB interface with high current output capability. While a standard USB interface provides a maximum current of 500mA, high-energy devices like mobile hard disks and USB optical drives may require more. The “+” sign indicates an output current of up to 1000mA (1A), enhancing the device’s drive capability.

SS and SS 10

The “SS” label stands for SuperSpeed, indicating a USB 3.0 port. The “SS 10″ label signifies a USB 3.1 port, which offers faster data transfer rates.

Lightning Logo

The lightning logo generally appears on notebooks and indicates a USB port with a power-off charging function. This means the port can use its own battery or an external power supply to charge mobile devices even when the notebook is turned off. The lightning mark with an arrow indicates Thunderbolt 3, which supports two-way charging and data transmission, up to 40Gbps throughput, and the ability to move up to 100 watts of power over the interface.

Conclusion

USB technology has become an integral part of modern electronics, offering versatile and efficient solutions for data transfer and power delivery. Understanding the different USB types, their applications, and the power guidelines can help users make informed decisions and troubleshoot common issues. As USB technology continues to evolve, its relevance and applications will only expand, further enhancing the user experience across various devices and industries.
